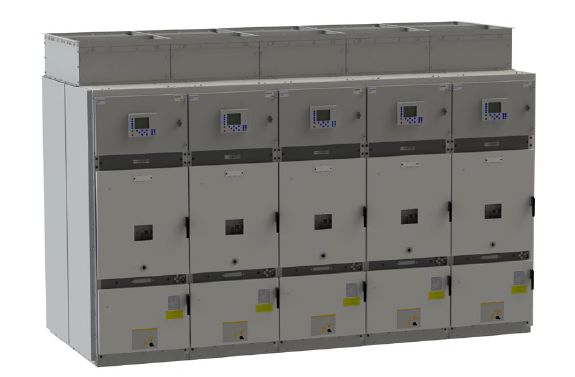

ABB UniSafe 2.0

Air Insulated Medium Voltage Switchgear
for Primary Distribution

Certification according to IEC62271-200

UniSafe 2.0 has been type-tested in compliance with international standards and holds a wide range of certifications. The switchgear construction is modular and made up by placing standardized units, side by side in a coordinated way. Safety and reliability are key design criteria, so the units are fully arc-proof. Installation requires very simple civil work.

General Electrical Characteristics

UniSafe 2.0 Tested Type

Voltage:

12kV and 17.5kV

Current Values:

630A, 1250A, 2000A, 2500A, 3150A, 3600A, 4000A

Short Time Current:

31.5kA

Circuit Breaker:

VD4

Pole Type:

PT

Type Test and Parameters

Power Frequency and Impulse:

12kV: 28kV (1min) / 75kV

17.5kV: 38kV (1min) / 95kV

Temperature rise:

40°C (60Hz)

IP Degree:

IP4X

Short Time Current:

31.5kA for 3 sec

Internal Arc:

AFLR 31.5kA for 1 sec (both lateral and top solution)

UniSafe 2.0 Tested Type

Voltage:

24kV

Current Values:

630A, 1250A, 2000A, 2500A

Short Time Current:

25kA

Circuit Breaker:

VD4

Pole Type:

PT

Type Test and Parameters

Power Frequency and Impulse:

24kV: 50kV (1min) / 125kV

Temperature Rise:

40°C (60Hz)

IP Degree:

IP4X

Short Time Current:

25kA for 3 sec

Internal Arc:

AFLR 25kA for 1 sec (both lateral and top solution)

Main Typical Units
